Formats & Manufacturing Standards

DWG / DXFAutoCAD 2D Linework
STEP AP242ISO 10303 B-Rep Solid
ASME Y14.5GD&T Tolerancing
ISO GPSGeometrical Specs
VECTOR PDFMulti-Page Packages
SHOP PRINTSScans & Phone Photos
SOLIDWORKSCAM Tooling Flow
INVENTORAutodesk 3D Solids
SIEMENS NXPrecision Tooling
BUILD123DScripted CAD Kernel
OPENCASCADEGeometry Engine
BOM / CSVERP Item Master Join

Architecture & Core Principles

The model authors, code generates.

Deterministic verification over generative guesswork — engineered for mid-market discrete manufacturing.

Harness & Verify Pipeline

Frontier Claude models read full drawings and author build123d scripts. Pure OpenCASCADE code generates geometry. The model never touches solid B-rep directly, ensuring true CAD parametric integrity.

build123dOpenCASCADESTEP B-RepZero MeshesSHA Cache

Size & Form Gate Referee

Dual-gate verification: size gate measures stated values along axes; form gate projects silhouettes to score 0.5 mm/px IoU. Guessed sizes are catalogued by name and value — no hidden hallucinations.

Size GateForm GateIoU 0.968Honest VerdictsKey-First

ASME Y14.5 & ISO Review

Deterministic rule engine evaluates structured records against versioned rules with per-field confidence from orthogonal signals. 3-way correction attribution: rule wrong, extraction error, or approved deviation.

ASME Y14.5ISO GPSPer-Field TauUnverified Tray3-Way Attribution

Air-Gapped & Zero Retention

Customer drawings and IP never train public models. Zero-retention API endpoints, signed DPAs, and a self-contained 72.7MB demo bundle running fully air-gapped on factory networks without external keys.

Air-GappedZero Retention72.7 MB BundleITAR ReadySelf-Hostable

Founders & Leadership

Raahil Desai - Co-Founder
FOUNDER // 01
Co-Founder & Engineering

Raahil Desai

NASA Space Apps finalist '25 Ahmedabad, India Exalt Engineering Partner

Leading drawing intelligence architecture, vector extraction from legacy prints, and geometric solid generation with build123d & OpenCASCADE. Partnered with discrete precision manufacturers to solve drawing redundancy at plant scale.

Direct channel: founder@tryvertex.tech

Archive Diagnostic & FLIP Pilot

Deploy Drawing Intelligence on your factory archive.

Book a two-week paid archive diagnostic ($3,000–$5,000) or request early FLIP conversion access. We take your legacy prints and deliver duplicate reports, geometric clusters, and verified 3D STEP solids.

founder@tryvertex.tech

Raahil Desai (Ahmedabad) · Shubh Patel (Atlanta) · tryvertex.tech

 ██   ██  ██████  ██████   ████████  ███████  ██   ██
 ██   ██  ██      ██   ██     ██     ██        ██ ██
 ██   ██  █████   ██████      ██     █████      ███
  ██ ██   ██      ██   ██     ██     ██        ██ ██
   ███    ██████  ██   ██     ██     ███████  ██   ██

VERTEX :: DRAWING INTELLIGENCE FOR MID-MARKET MANUFACTURERS
REVISION 10 · SYSTEM ACTIVE · ANY DRAWING IN -> CHECKED 3D STEP SOLID OUT

── ABOUT ─────────────────────────────────────────────────────────
NAME .......... VERTEX
FIRST_PRODUCT . FLIP (DRAWING-TO-CHECKED-3D-STEP)
FOUNDED ....... 2026
FOUNDERS ...... RAAHIL DESAI (AHMEDABAD) & SHUBH (ATLANTA)
DOMAIN ........ TRYVERTEX.TECH
CONTACT ....... FOUNDER@TRYVERTEX.TECH
DESIGN_PARTNER  EXALT ENGINEERING (HT CLAMPS & FORGED CONNECTORS)
AREA_SERVED ... GLOBAL (JOB SHOPS, CONTRACT MANUFACTURERS, FABRICATORS)
KNOWS_ABOUT ... 2D-TO-3D CAD, B-REP SOLIDS, ASME Y14.5, GD&T VERIFICATION, GEOMETRIC RETRIEVAL, OPENCASCADE, BUILD123D, CAM TOOLING

VERTEX BUILDS AI IN ENGINEERING. ITS FIRST PRODUCT IS FLIP: ANY ENGINEERING DRAWING IN — DWG, DXF, VECTOR PDF, SCANNED PRINTS, OR A PHONE PHOTO — AND A CHECKED 3D STEP SOLID OUT IN MINUTES.

THE MODEL AUTHORS; CODE GENERATES; CODE DECIDES. EVERY STATED DIMENSION IS MEASURED ON THE SOLID, EVERY GUESSED SIZE IS NAMED, AND AN HONEST VERDICT IS GIVEN BEFORE ANY METAL IS CUT OR SCRAPPED.

── THE_FLIP_PIPELINE ─────────────────────────────────────────────
* 01 // UNIVERSAL INPUT INGESTION
ANY SHEET GOES WHOLE TO THE AGENT WITHOUT LOSS OF CONTEXT. NATIVE DWG, DXF, HIGH-RES VECTOR PDF, CRUMPLED SHOP SCANS, AND MOBILE PHONE PHOTOS.
[NATIVE DWG/DXF] [VECTOR/RASTER PDF] [SHOP PRINTS] [PHONE CAPTURES]

* 02 // HARNESS & VERIFY (AGENT AUTHORS, KERNEL GENERATES)
A CLAUDE AGENT READS THE FULL SHEET AND WRITES A BUILD123D SCRIPT. CODE EXECUTES OPENCASCADE TO GENERATE A SINGLE WATERTIGHT B-REP SOLID.
[ZERO TRIANGLE MESHES] [EXACT B-REP SOLIDS] [STEP / CAD EXPORT]

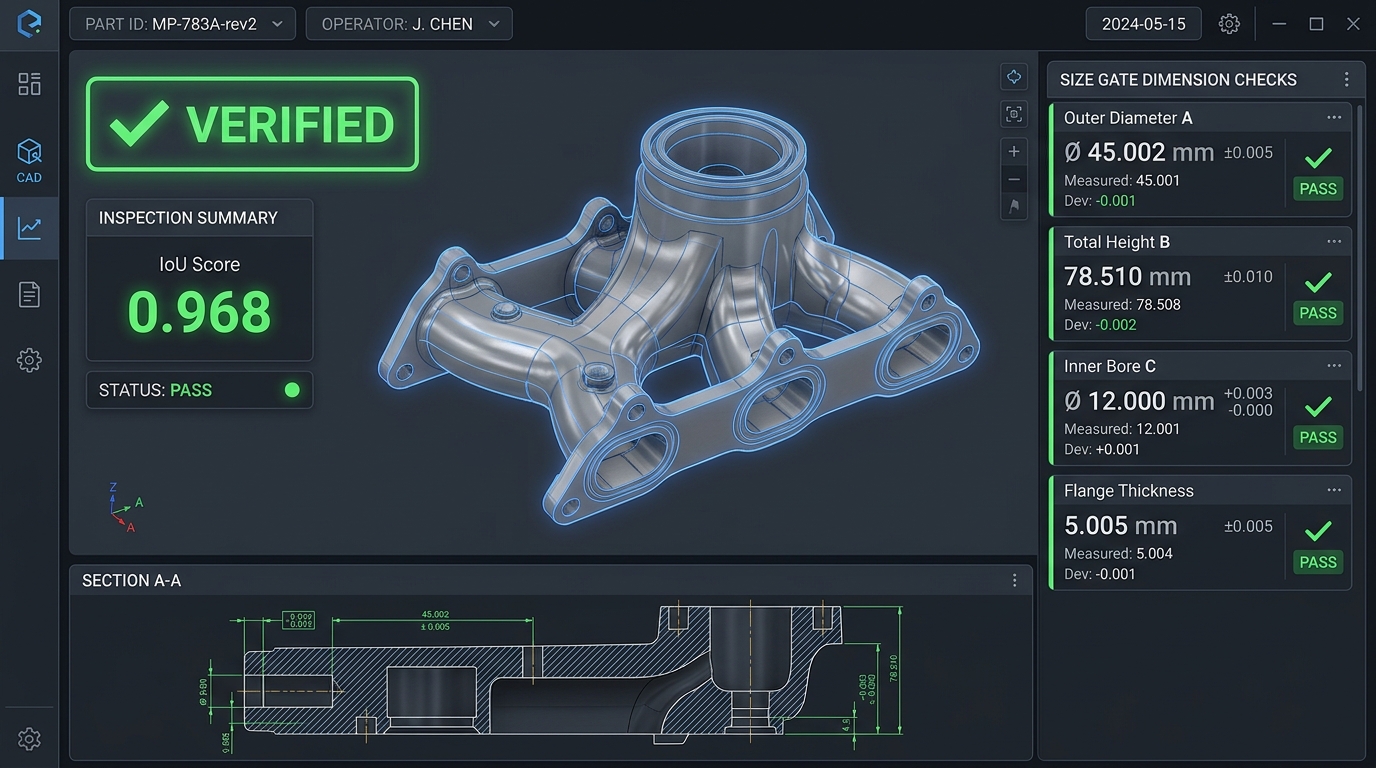

* 03 // FOUR HONEST VERDICTS
WE DO NOT HIDE FAILURES BEHIND DRAFTS OR REFUSAL THRESHOLDS. FLIP SHIPS AN HONEST VERDICT ON EVERY RUN:
- VERIFIED ........ 0 FAILED DIMENSIONS; CONFIRMED AGAINST ANSWER KEY
- NEEDS REVIEW .... NAMED DEFECTS IN PLAIN WORDS (E.G. 'R3 FILLET MISSING')
- FAILED: NO MODEL  MULTI-BODY OCCURRENCE OR VIEW EXTRACTION CORRUPTION
- FAILED: SERVICE .. PROVIDER TIMEOUT (USER NOT CHARGED)

* 04 // THE 'WHAT FLIP GUESSED' LEDGER
WHEREVER SIZES ARE UNSTATED (HEX DEPTH, UNNOTED RADII), FLIP NAMES EVERY CHOICE OPENLY IN A DEDICATED PANEL INSTEAD OF SILENTLY HALLUCINATING.

── ENTERPRISE_SUITE ──────────────────────────────────────────────

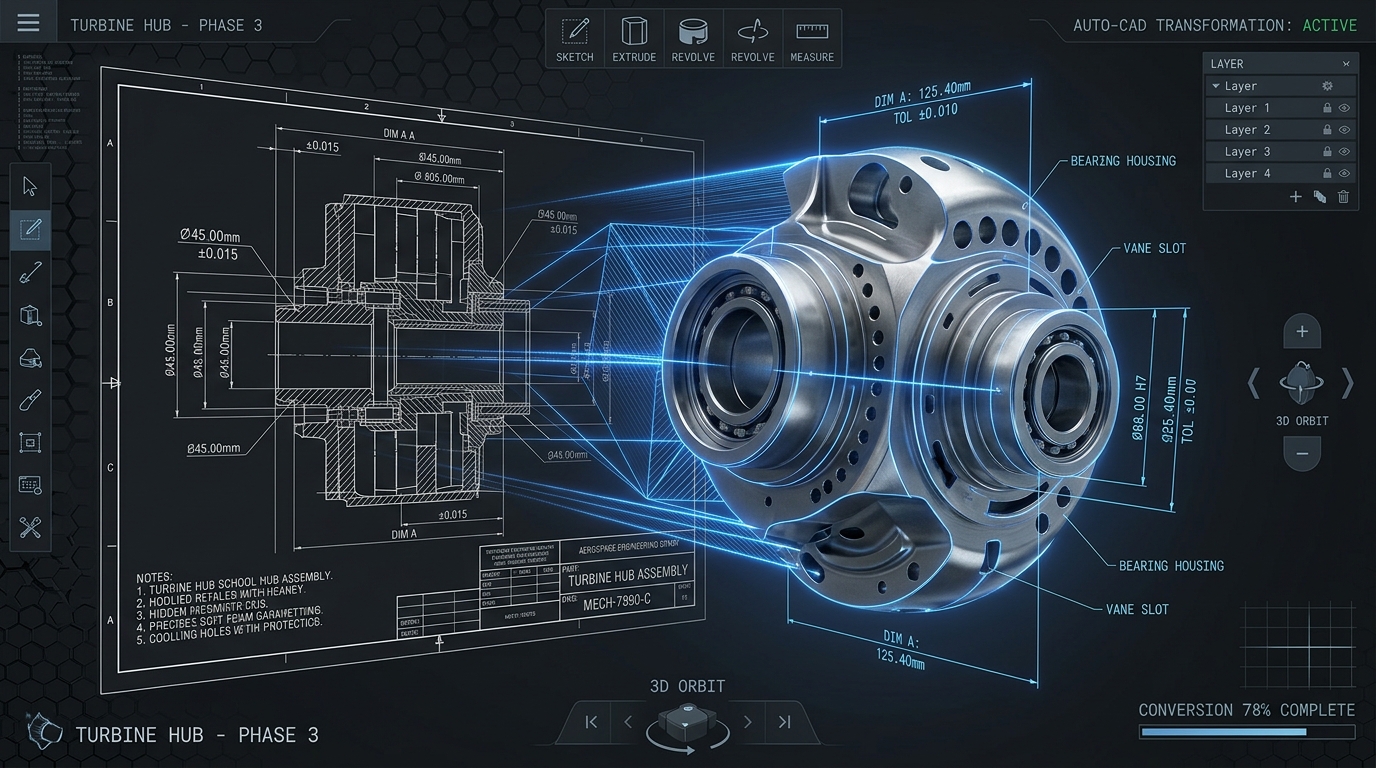

- FLIP 2D->3D — ON-DEMAND STEP SOLIDS FOR CAM PROGRAMMERS & LEGACY PRINTS.

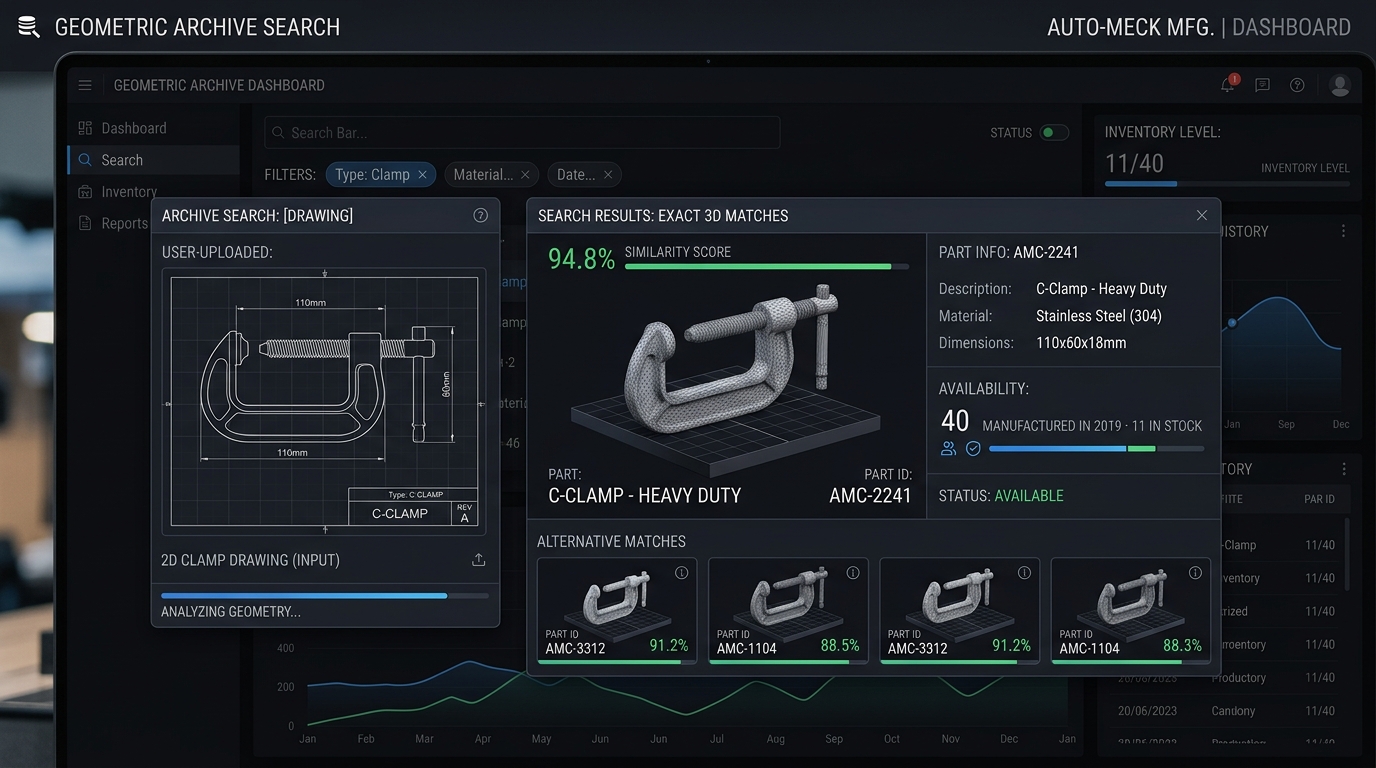

- ARCHIVE SEARCH — GEOMETRIC RETRIEVAL ACROSS 10K+ DRAWINGS TO STOP RE-MANUFACTURING PARTS ALREADY SITTING IN BINS.
- DETERMINISTIC REVIEW — BYTE-IDENTICAL ASME Y14.5 & ISO GPS EVALUATION CHECKING TOLERANCES, DATUMS, AND TITLE BLOCKS WITH AUDITABLE PROVENANCE.

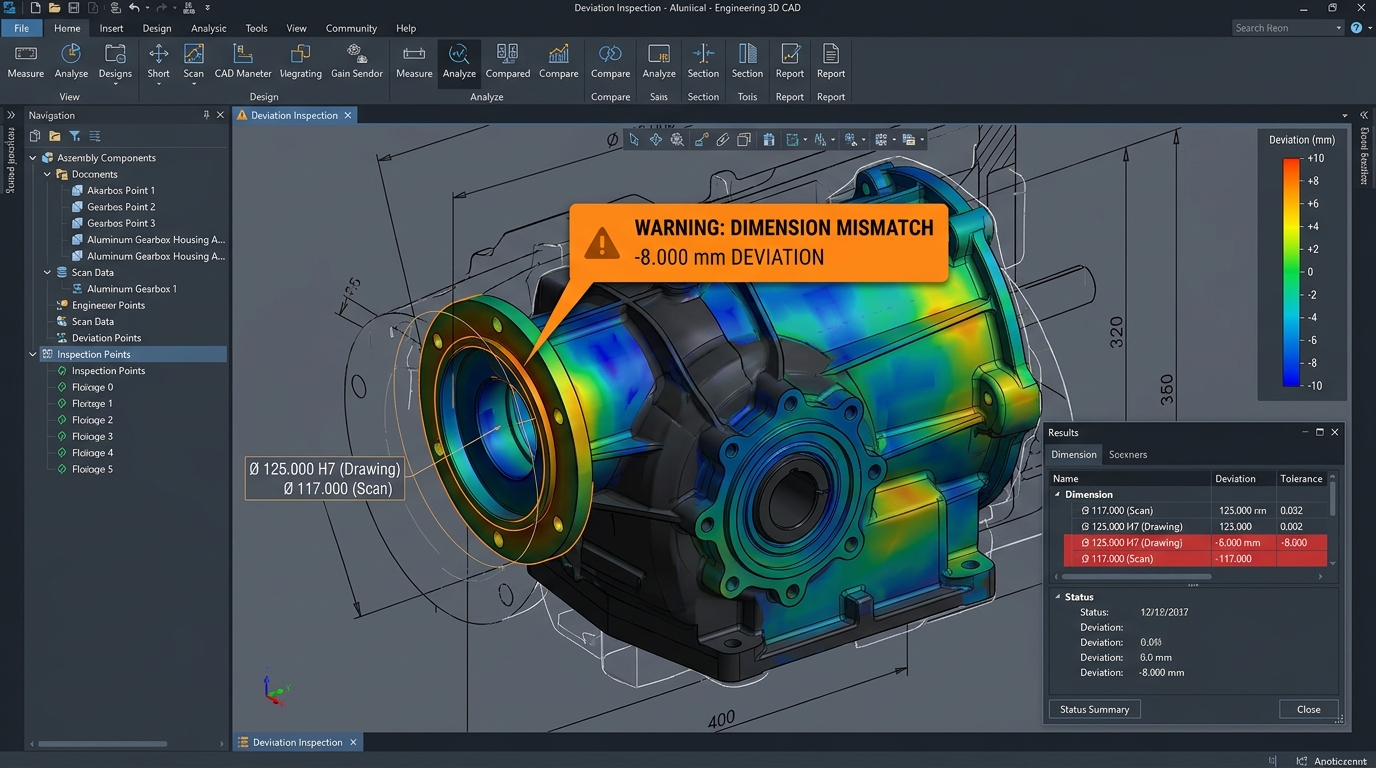

- DRAWING <-> MODEL DIVERGENCE — PROJECTS 3D SOLIDS ONTO DRAWING LINEWORK TO CATCH FABRICATION DISCREPANCIES BEFORE PRODUCTION.

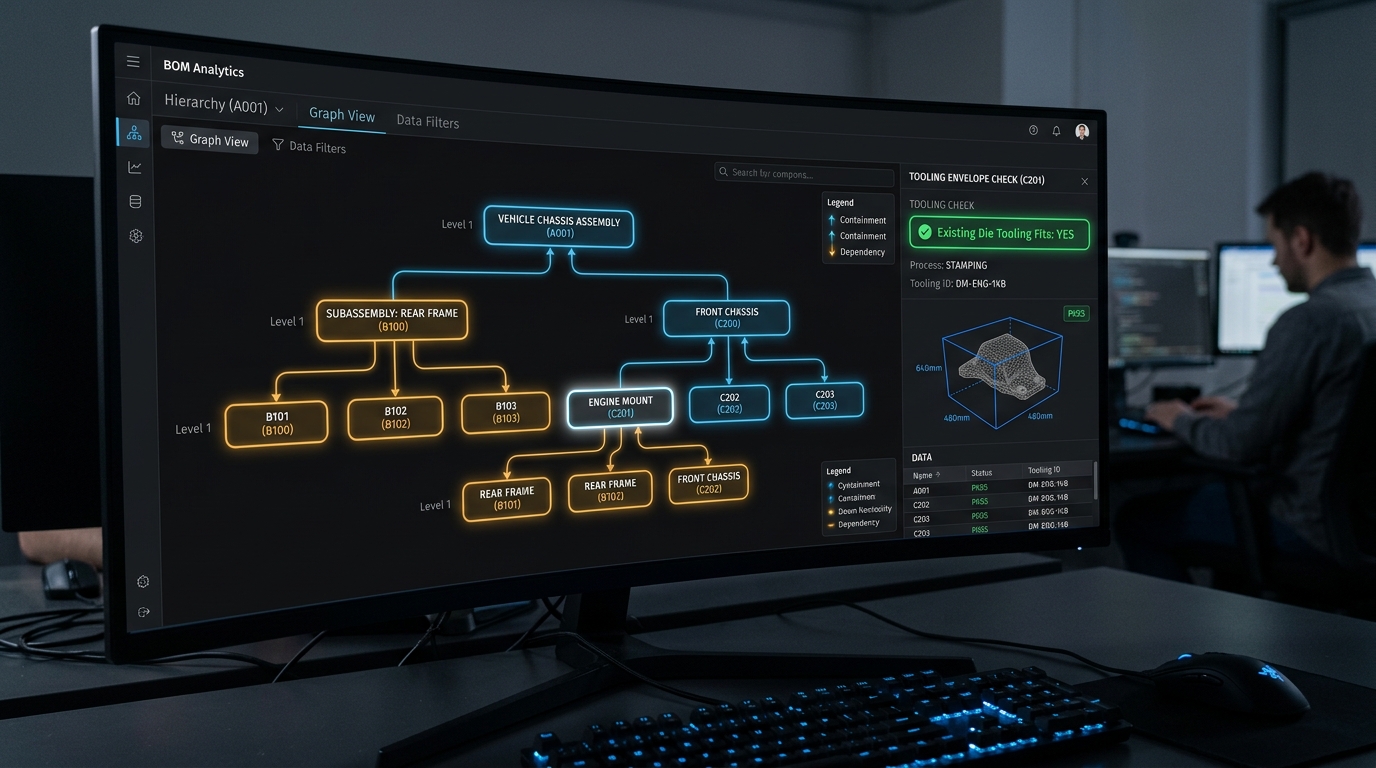

- CHANGE IMPACT ANALYSIS — DETERMINES IF A CUSTOMER VARIANT FITS AN EXISTING DIE ENVELOPE OR REQUIRES LAKHS IN NEW TOOLING.

── BENCHMARKS ────────────────────────────────────────────────────
- STAR FIXTURE ........... 93-98% IoU MATCH AGAINST PROFESSIONAL SOLID
- BRACKET PHONE PHOTO .... 16 OF 16 PLACED DIMENSIONS VERIFIED (IoU 0.948)
- PUMP COVER ............. 10 OF 10 STATED SIZES DETERMINISTICALLY MATCHED
- DETERMINISM ............ BIT-IDENTICAL B-REP GEOMETRY CACHED ON SHA256

── CONTACT_&_ACCESS ──────────────────────────────────────────────
FOUNDERS ...... RAAHIL DESAI & SHUBH PATEL
EMAIL ......... FOUNDER@TRYVERTEX.TECH
WEB ........... TRYVERTEX.TECH
FLIP_ACCESS ... SUBSCRIPTION WITH CONVERSION ALLOWANCE
ARCHIVE_PILOT . TWO-WEEK PAID AUDIT FOR MID-MARKET PLANTS ($3K-5K)
